Before starting installation steps I would like to give a brief intro on
What is Openfiler?
Openfiler is an operating system that provides file-based network-attached storage and block-based storage area network.
Hardware Requirements
Minimal
Openfiler needs at least a 500 MHz CPU, 256 MB of RAM, 10 GB hard disk space (8 GB for OS installation and 2 GB for swap space), an optical drive (for local installation) and an Ethernet like network interface.
Optimal
A 64 bit processor with 1.6 GHz or more, 2 GB of RAM, 10 GB of hard disk space (8 GB for OS installation plus 2 GB for swap space) and a hardware RAID disk array controller is recommended for optimal performance.
You can get more update on feature of openfile on the wiki page
Let me show you step by step instructions to set up a new machine with openfiler. Now this machine can be a physical machine as well as a virtual machine. Generally in my case I use openfiler for test purposes on my virtual machines.
You can download the iso file for openfiler free of cost from their official website
https://www.openfiler.com/community/download
Follow the below screenshots (Click on the image in case you find it hard to read the texts on the image)
Insert the iso file and boot your machine from the iso and follow the instructions

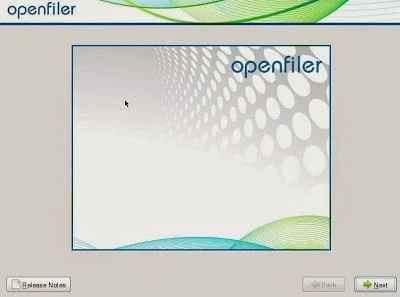

Click Next to start the installation

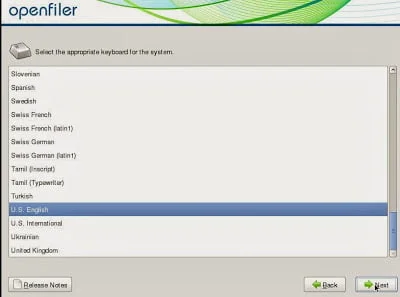

Select your preferred Language which for me is US English

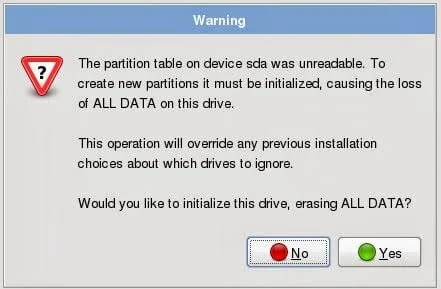

Select Yes to format the selected Hard Disk

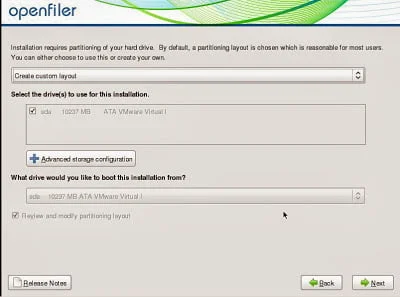

Select "Create custom layout" from the drop down menu as shown below and click on Next

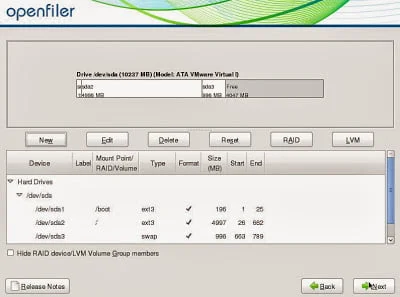

Create a custom layout of your partition system.
NOTE: Make sure that you leave free space which will be used for storage purpose(iSCSI, Fiber, etc..) using openfiler
Select the default primary partition. I most cases it will automatically detect the root partition

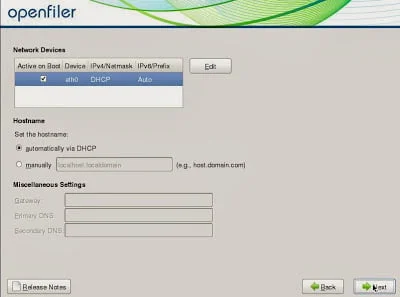

Configure your network and provide a proper hostname in the below section.

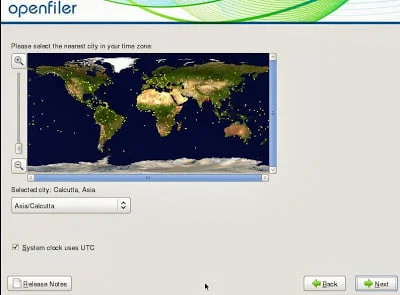

Select your continent and region for the date and time settings as in my case it is Asia/Kolkatta

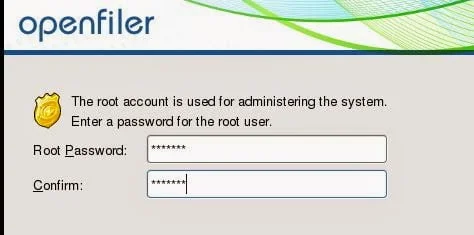

Provide a root password for your machine

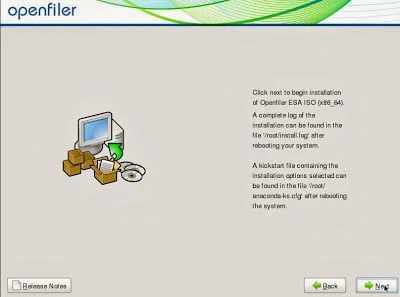

Click on Next to start the installation process
Once the installation is completed click on Reboot

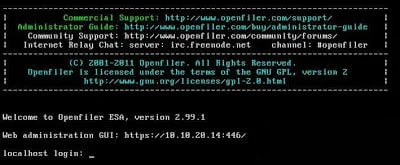

So once the machine is rebooted you can see the ip address of the machine and the format which you have to use to access openfiler using client machine browser.
Go to the browser and type you machine ip address which for mine is
https://10.10.20.46:446

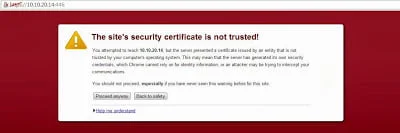

Now since you are trying to access a https page, you will be prompted for security certificate authentication by the browser as shown below
Click on Proceed anyway

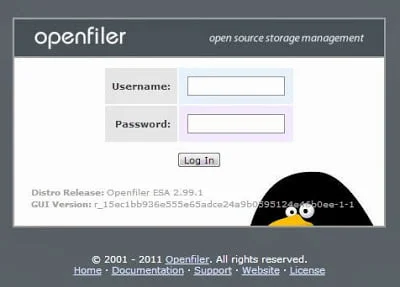

After that you will get the logon page for openfiler
Your default login credentials will be
Username : openfiler
password : password
